Revo 4K Pro is based on a 1″ Sony chip. With USB3.0, HDMI, GigE simultaneously output. It packs our most powerful on-board system into our most popular design at our most affordable price. It’s just what you’ve been waiting for.
What's New?
4K resolution brings magnificent image quality.

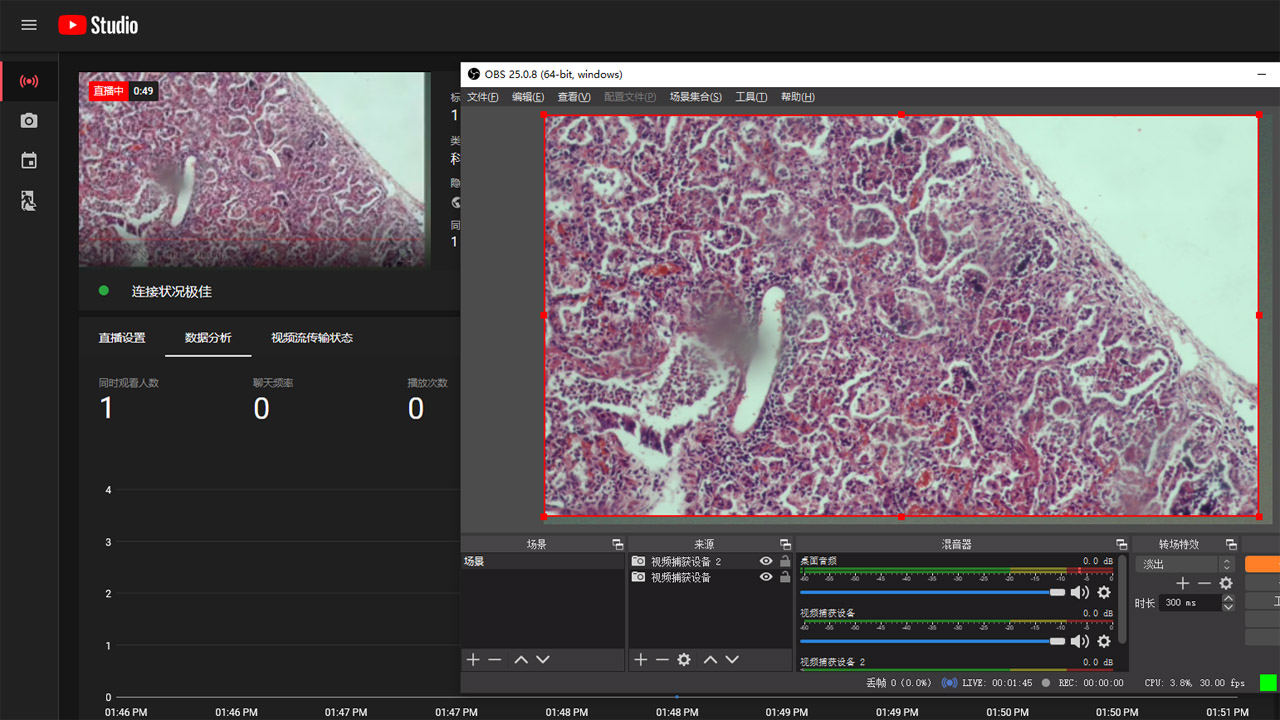

With the GigE output and UVC protocol, online microscope video sharing is at hand.
Brand new PC software and On-board Linux system. Revo HD has been re-made.
Get more clarity in your video
4 folds resolution of 1080P
This is much more detailed than anything you’re likely to have seen before. 1080P is only 1920 pixels across. 4K is significantly more detailed, since it has twice as many pixels horizontally, and four times as many pixels in total.
On-board measurement features
Measurement directly via HDMI
With the on-board Linux system, Revo 4K Pro is not only a superb imaging camera, but also a powerful measurement tool. This greatly extends the application areas of the HDMI camera. The measurement features including calibration, scale bar and al the other measurement features you can get by PC software.
30FPS@4K
30fps@4K Full Frame Rates
Guaranteed 30 fps at 4K resolution, Revo 4K Pro presents a perfect combination of outstanding resolution and frame rate, which allows the user to smoothly manipulate live images without any monitor lag.
HDMI FL imaging Capability
A well-rounded HDMI camera
Taking advantages of the ultra-high signal to noise ratio sensor, Revo AF allows you to set up to 10 seconds exposure time. The incredibly efficient 3D noise reduction performance delivers finest detailed images for low light fluorescence.
Live image stitching and EDF available on new PC software
2 new technologies
“Real-time” image stitching: It generates large-sized mosaic images in a few seconds while moving the stage, which is light, smooth and worry-free!
“Real-time” depth-of-field fusion: Turning the focus ring to capture different depth of field points while generating clear depth of field images, fast, accurate and efficient.
Built- in Mouse Control Camera
No PC needed.
With the built-in application software inside the camera. The user can control the camera with just a mouse. There is no need for a PC.
| Item# | Revo 4K Pro |
|---|---|
| Warranty | 1 YEAR |
| Software Support | 3 Months |
| Sensor | SONY IMX183 |
| Resolution | 8.0 megapixels |
| FPS @ Max Res(USB3.0) | 25 @ 3840x 2160 |
| FPS @ Max Res(HDMI) | 30 @ 3840 x 2160 |
| Camera Interface | USB 3.0, HDMI, GigE |
| White Balance | Automatic, Manual |
| Driver API Compatibility | DirectX |
| File Formats | JPG/PNG/TIFF/DICOM |
| Exposure Control | Automatic |
| Exposure Time | 2ms – 10s |
| Supported Operating Systems | Windows 7 and Above, Mac OSX |
| System Requirements | 8GB RAM Recommended, 2Ghz+ CPU Recommended, USB 3.0 High Speed Port |
| Power Source | External Power Supply |
