Core Technology: “Real-time” image stitching
Revo 5Pro Pro is equipped with Mosaic 2.0, which provides a “real-time image stitching” function. It generates large-sized mosaic images in a few seconds while moving the stage, which is light, smooth and worry-free!
Core Technology: “Real-time” depth-of-field fusion
Revo 5Pro Pro also provides real-time depth of field fusion. Turning the focus ring to capture different depth of field points while generating clear depth of field images, fast, accurate and efficient.
.png)
Efficient image acquisition – editing – measurement – report output
From the user’s point of view, redefining the image acquisition – editing – measurement – report output work-flow process, taking into account the best operating procedures, greatly saves the operating time, effectively improving productivity.
Excellent imaging performance for bright field, fluorescence and polarized imaging needs
The use of ISP color-interpolation algorithm effectively corrects the color deviation of the sensor’s spectral response, to simulate the human eye’s sensitivity to color. The true color in the eyepiece, whether it is a biological bright field, stereo or fluorescence image.
(2).png)

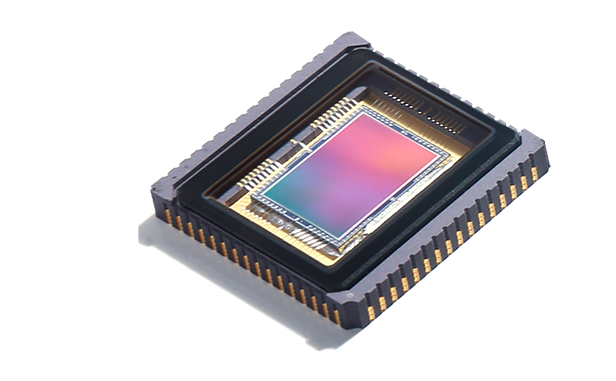

Sony professional CMOS sensor
Uses a Sony 5 megapixel CMOS 2/3″ sensor-IMX264, with 3.45 x 3.45 μm pixels. The resolution of the captured image can reach 2448 x 2048. Images taken at low magnification readily resolved.
%20(1)(1).png)
Advanced Global Shutter Technology
With global shutter technology, all pixels are exposed simultaneously, which allows accurate tracking and capture of dynamic samples and provides, crisp, undistorted, clear images of fast moving specimens.
Stable high-speed transmission
USB 3.0 high-speed transmission interface, simple and convenient while ensuring a stable High transmission rate which allows fast focusing at high resolution. Imaging can be performed at a rate of 35 fps.
%20(1)(1).png)

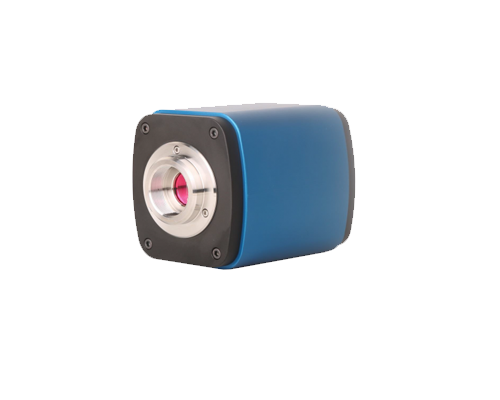

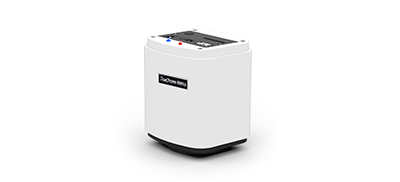

| Product Model | Michrome 5 Pro |
| Sensor Model | IMX264LQR-C |
| Sensor Type | CMOS |
| Sensor Size | 2/3″ |
| Color/Mono | Color |
| Pixel Size | 3.45 x 3.45(μm) |
| Resolution | 2448(H) x 2048(V) |
| Frame | 35fps @5MP |
| Shutter Mode | Global |
| Exposure Time | 0.13ms-15s |
| Automatic Set | Exposure, Color Scale, White Balance |
| Manually Set | Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction |
| Color Temperature | 2000-15000K |
| ADC Depth | 12Bit |
| PC Software | Mosaic V 2.0 |
| Picture Format | JPG / PNG / TIFF |
| Operating System | Windows / Linux / Mac |
| Multiple Cameras | Supports 4 Cameras Simultaneously |
| Data Interface | USB 3.0 |
| Optical Interface | Standard C Mount |
| Camera Size | 68 x 68 x 46 mm |
| Camera Weight | 330 g |
| Operating Temperature | 0-60℃ |
